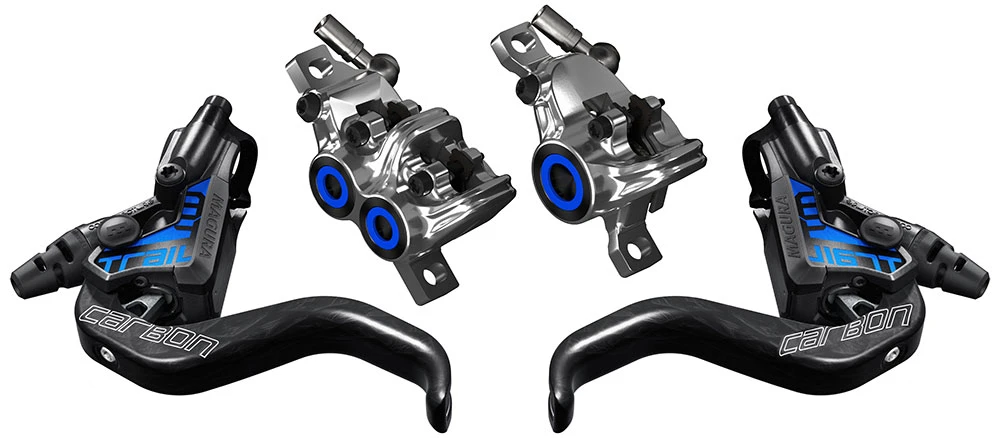

MAGURA MT Trail SL HC-Carbolay® Disk Brake Set

The MT Trail SL HC-Carbolay represents Magura’s new definition of trail braking performance – four front pistons for maximum braking power, two rear pistons for perfect modulation. All for a set weight of just 460 grams.

The new trail performance bench mark: Magura’s MT Trail SL HC-Carbolay disc brake set

The outstanding performance of the MT7 with the low weight of the MT8 results in excellent trail performance. The MT Trail SL Carbon is 8% lighter than the MT7 and only 15% heavier than the MT8, but still provides ultimate trail performance.

Through the Carbolay lever and handlebar clamp, the MT Trail Carbon has a shiny deep-black carbon design on the handlebars and high-gloss chrome on the brake calliper.

Features – MT Trail SL

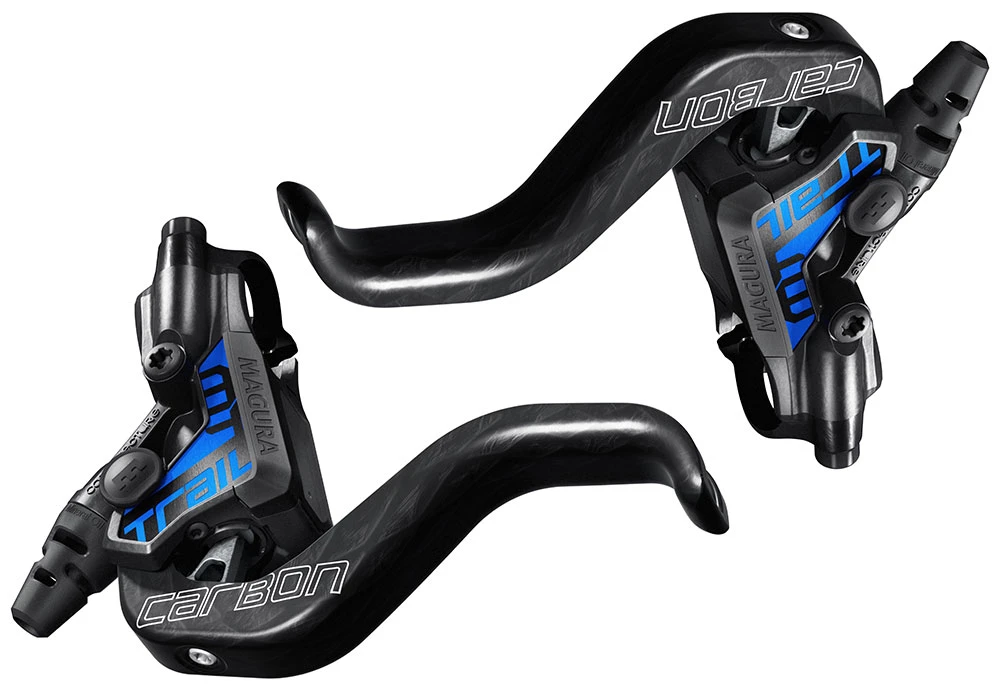

• Carbotecture® SL brake lever housing and carbon handlebar clamp
• Ergonomic, 1-finger HC Carbon lever

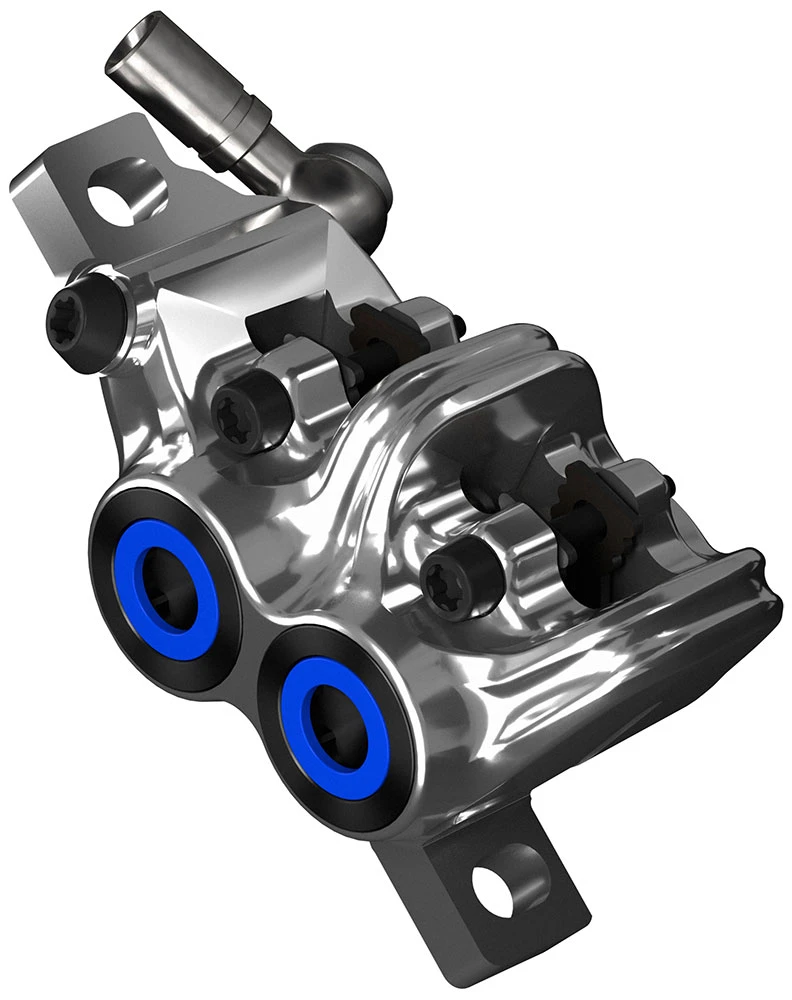

• Forged 4-piston brake calliper with banjo front

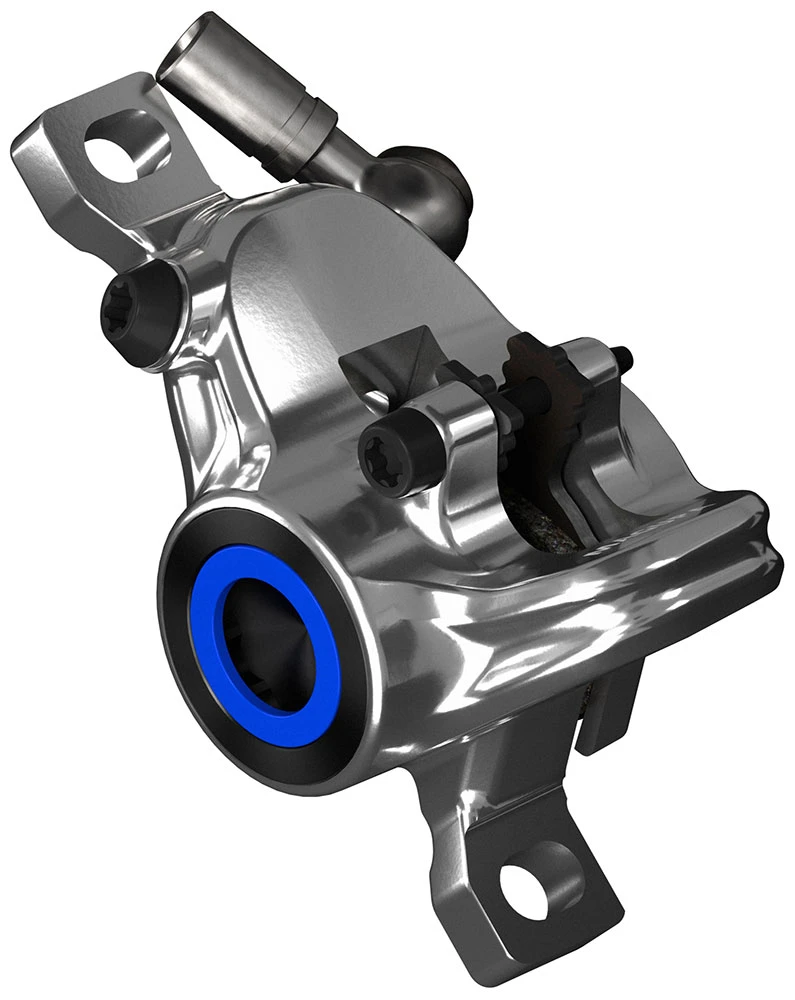

• Forged 2-piston brake calliper with banjo rear
• magnetiXchange brake pistons for easy brake pad replacement
• Compatible with all MAGURA Storm discs. Rotor recommendation: Storm HC / STORM SL 203/180/160
• Made in Germany
• Designed and engineered in Germany
• Model year 2019

Product Features

• Use: MTB Trail
• Technical features:
  • Front: Full hydraulic 4-piston floating caliper
  • Rear: Full hydraulic dual piston floating caliper
• Pad wear adjustment: Automatic
• Brake pads:
  • Front: Organic 9.1 Performance (4 Pistons 2 Pads) 8.1 Performance (4 Pistons 4 Single Pads)
  • Rear: Organic 7.4 Performance (replaces 7.1), 7.2 Endurance
• Hose fitting caliper: RHR – Rotateable hose routing
• Brake hose: MAGURA disc tube easily shortened
• Transmission medium: MAGURA Royal Blood mineral oil
• Hydraulic system: Open, with expansion chamber
• Intern. standard mounting (IS): Yes, adaptor
• EBT (Easy Bleed Technology): Yes
• Feel-Safety-Ergonomic: Yes
• Dual Docking for trigger shifters: Yes
• Reach adjust: Yes (with tool)
• BAT (bite point adjuster): No
• magnetiXchange: Yes
• OPD (caliper in one-piece design): Yes
• Postmount mounting (PM): Yes, direct mount
• 2-Piece Lever Clamp: Yes
• First full carbon master ever: Yes
• Material fitting bolts: Aluminium
• Brake lever and caliper: Carbotecture® SL (Master), Aluminium forged (caliper)
• Lever blade: Carbolay
• Hose lengths: each 2200mm (shortable)
• Rotor diameter: Front 203, 180, 160 / Rear 203, 180, 160

Color

• Master / lever: black/blue
• Caliper: chrome/blue

Weight

• Front brake: 240g
• Back brake: 220g
• Set weight: 460g

Scope of delivery

• 1 MT Trail SL HC-Carbolay® Disc Brake Set
• 4 Fastening screws
• 2 Insertpins
• 2 Olives
• 2 Transport safety
• Disc brakes are ready-to-install, filled and bled!

Mounting/Installation a Magura MT Trail Carbon brake

>

Shorten the tubing/hose of a Magura disc brake MT Trail Carbon
